automatic biodegradable pulp paper tableware plate small making
machine line
Introduction of the pulp molded Tableware plate machine
The Molded pulp tableware plate production line process: pulping,
screening and refining process. The pulp will be adjusted to a
certain consistency, and then it will be formed on the mold of the
forming machine by vacuum suction. The final molded pulp tableware
can be produced after drying, pressing, trimming and die-cutting.
Molded pulp tableware has high requirement on the output, hygiene
and surface finishing, so the molded pulp tableware machines that
ZH developed are with large platen size, fully automatic control,
high precision platen machining, high precision mold processing and
interlligent temperature control. With all these features, molded
pulp tableware machine improved by ZH drastically the production
efficiency, safety and product quality, with lower labor cost.
Full Automatic Industrial Packages Making Production Line
Full Automatic Rotary Forming machine production line Specification
Two-face forming platens, one transferring platen. Mold Platen Size
1800×440mm
Dimension 11100×2230×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
5000pcs/hr
Effective Volume 3m3
Power 55kw
Four face forming platens, one transferring platen. Mold platen
size: 1500×440mm
Dimension 14800×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
6000pcs/hr
Effective Volume 3m3
Power 55kw
Four face forming platens, one transferring platen. Mold platen
size:1800×440mm
Dimension 14800×2230×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
Description: The production line capacity isbased on the 30 cell
egg tray. (Mold size: 300×290mm, weight: 70g)
For different capacity and other products of the production line,
it can be customized according to clients' requirement.
Full Automatic Double Rotary Forming production line Specification
Model/Capacity
Hydrapulper Parameter
Forming Machine parameter
Drying Line
ET3600R
Effective Volume 2m3
Power 30kw
Four face forming platens, Two transferring platens.
Mold platen size:800×440mm
Dimension 19800×1230×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET5400R
Effective Volume 3m3
Power 45kw
Four face forming platens, Two transferring platens.
Mold platen size: 1200×440mm
Dimension 19800×1600×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET7200R
Effective Volume 5m3
Power 75kw
Four face forming platens, Two transferring platens.
Mold platen size: 1500×440mm
Dimension 19800×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET10000R
Effective Volume 8m3
Power 110kw
Four face forming platens, Three transferring platens.
Mold platen size: 1500×440mm
Dimension 22000×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
ET15000R
Effective Volume 8m3
Power 110kw
Four face forming platens, Fourtransferring platens.
Mold platen size: 1500×440mm
Dimension 30000×1880×2550mm
Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil)
Remarks: Capacity of the machine model is based on 30-cell egg
tray, with the size 300×290mm, weight: 70g.
For different capacity of the production line, customized
allocation is available according to the client's requirement.
The Advantages of Paper Pulp Molding Production Line
1. Waste paper Recycling with low cost
Its raw material are any kind of papers, like wasted newspaper,
carton, printers or leftover bits in paper mill, convenient to collect with low cost.
The cost of pulp molding product is much lower than EPS products.
2. Best environmental protection:
non-environmental pullution during the whole process of production,
utility and waste treatment: no waste water consumption with water
recycling, no waste materials with waste paper recycling, and
non-environmental pullution.
3.Recycling use
low recycling cost and it can be used repeatedly. Biodegradable as
vegetable fiber during one or two month. The finished products can
be stacked, space-saving.
4. Good Market prospect
There is a restriction in developed country such as Europe, America
ans Japan for importing EPS products, and advocate the use of
enviromental packaging materials, encourage for Eco-package
replaced of EPS packages in order to reject white pollution.
5. Good Performance.
Anti-shack, anti-static electricity, better efficiency than EPS, PS
and PVC products.
Application
Applicable Industry: food procesing industry, food supply industry,
catering industry
ZH Molded Pulp Co., Ltd is specialized in manufacturing pulp
molding machines, the first pulp molding machine supplier found in
1986.
Through 20 year’s experience, our company has a professional team
in designing, manufacturing, and after-sale service. Our team has
know the most advanced technology well in pulp molding machines,
which have the types of reciprocating machine, rotary machine. In
2008, we developed an energy-saving, small-space multi-layers
drying line, popular in domestic and abroad.
Our machine has been sold well at home and abroad such as South
America, Africa, Russia, and Middle-East area, in the quality of
energy-saving, advanced design, and reasonable cost.
FAQ
1.What kind of material we can use as the material? Any kinds of waste paper or used paper products like old
newspaper,magazines,books, used boxes, abandoned cartons etc, and
easy to collect the raw materials.
2.What kind of Fuel can be used for the whole production line? Generally the fuel is coal,natural gas,dieseal oil.

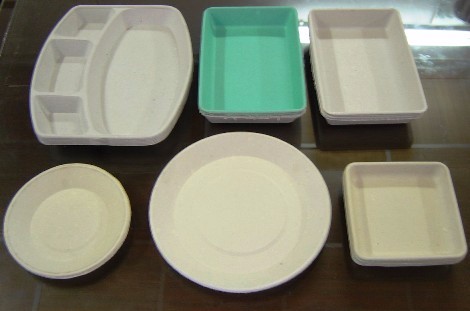

3.What kind of products can be made by this machine? All paper product trays and cartons like paper egg tray,egg
carton,egg box,fruit tray,bottle tray, plate and tableware,
electric product packing, disposable tray, shoes tray etc.
4. How to install the machine?
We will send engineers to your country to help install and test the
machine,and teach you how to use the machine.
5.How about the warranty? 12 months after installation.
We are a trustworthy manufacturer of many mold production lines:
Xiangtan ZH Pulp Moulded Co., Ltd is a professional
manufacturer of paper pulp molding machinery production line. The
former company is the first pulp molding machine supplier found in
1986 in China, which called Hunan Pulp Molding Factory belonging to
China Packaging Corporation. Our company is a professional paper pulp molding machinery
manufacturer from China. Through 30 years' improvement and
developing experiences, our company has a team professional in
designing, manufacturing, and after-sale service on paper pulp
molding machine lines. The production range: large capacity
automatic most advanced double rotary machine, rotary pulp forming
machine, small output reciprocating forming machine line, tableware
making machine, and other industrial package making machine line. Focused on paper pulp molding industry for nearly 20 years with
first-rate machinery designer engineers, the expertise ensured ZH
to provide sophisticated equipments and technology. With
professional processing technique, the paper mold technology and
manufacturing, installing, training, pre-sale and after-sale
service, we offers products with good price and high quality
machine line, and all-in-one service with satisfaction.
The inspectors test every finished machine and plants on set
parameters and standards to obtain sincere trust of our customers.
The personnel are further supervised by experienced experts of the
company. Our Products: We are involved in manufacturing, exporting and
supplying a wide collection of robust constructed products, such

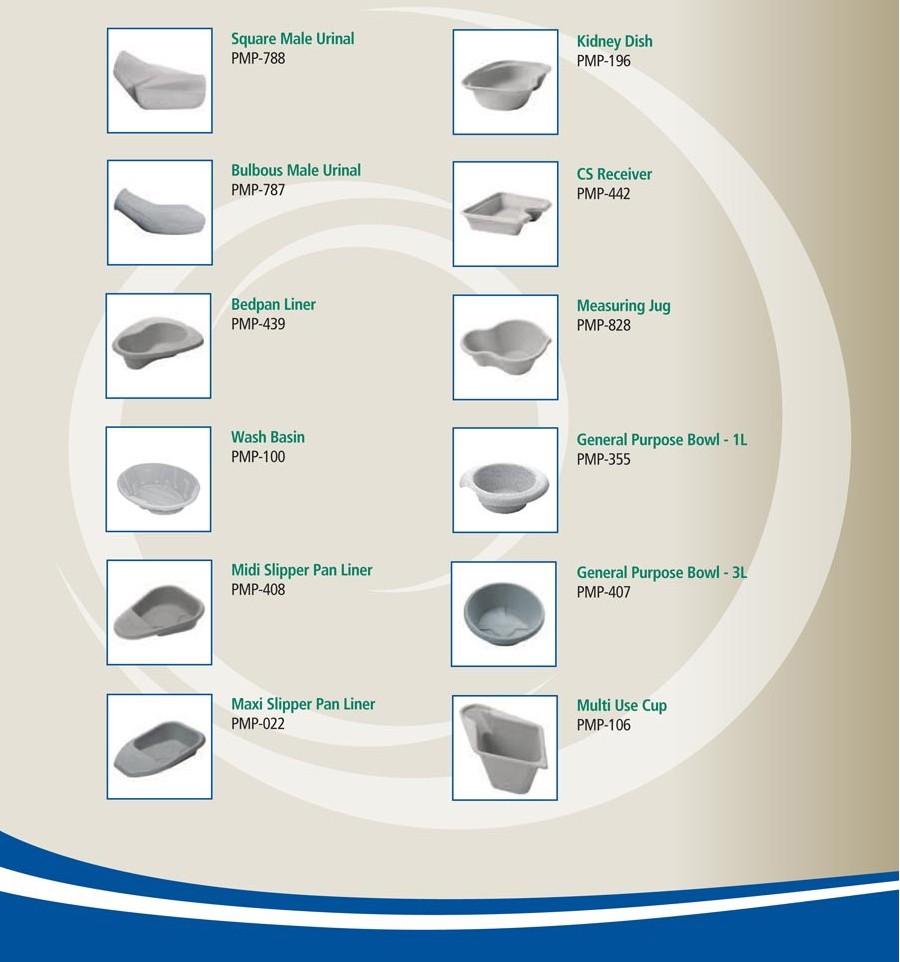

as: Egg Tray Egg carton making Machine line Fruit tray cup tray making machine line tableware plate making machine line other medical packages making machine line industrial packages making machine line Pulp Molding Machine Pulp Molding Plant Pulp Molding Production Line
Corporation Culture: Vision: To become a world-class technology leader in paper pulp
molded machinery line and engineering services company.
mission: Creating benefit valur for our customers.
