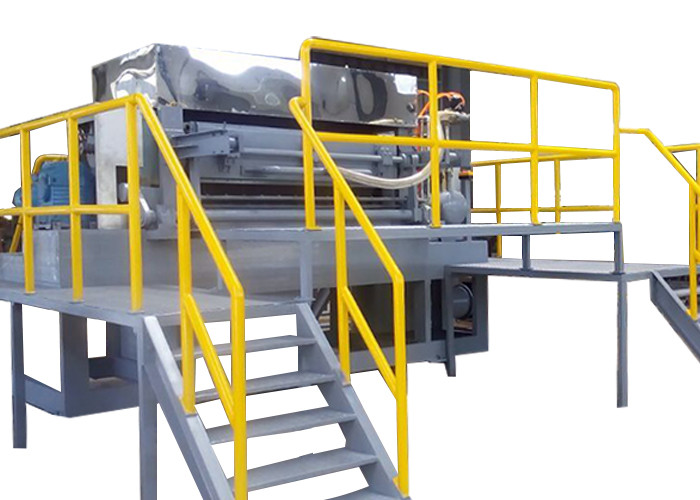

Fully Atutomatic Rotary Forming Machine
The fully automatic rotary forming machine line is for medium and
large capacity production, such as 2000pcs/hr, 3000pcs/hr,
3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, etc for choice.
There are some kinds of specification of 2 face platens, 4 face
platens, 6 face platens, 8 face platens and other specifications

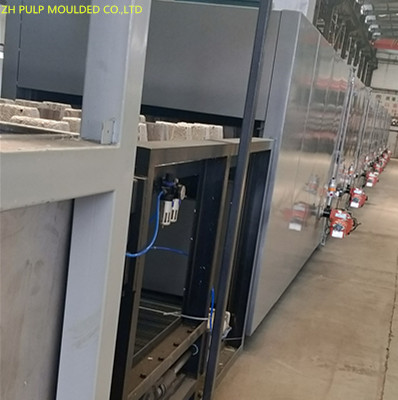

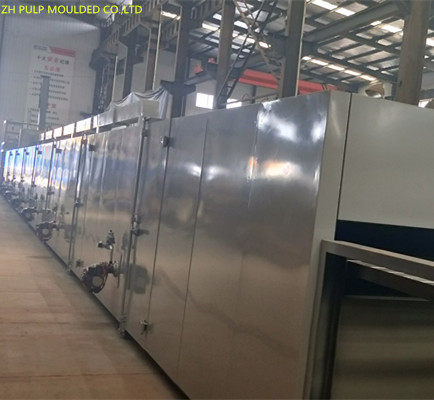

for the rotary machine; and single layer drying line and
multi-layer drying line for choose. The drying line can use diesel
oil, LPG, natural gas, coal, charcoal and steam heating, etc.

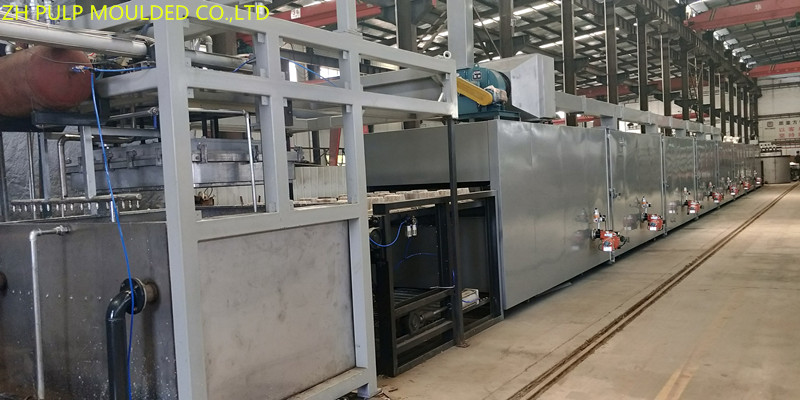

Full Automatic Rotary Forming machine production line Specification
Capacity | Pulping Machine Parameter | Forming Machine Parameter | Drying Line Parameter |
2250pcs/hr | Effective Volume 2m3 Power 30kw | two-Face forming platens, one-face transferring platen. Mold Platen
Size 1200×440mm | Dimension 11100×1530×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
3000pcs/hr | Effective Volume 3m3 Power 30kw | Two-face forming platen, one-face transferring platen. Mold Platen
Size 1500×440mm | Dimension 11100×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
3600pcs/hr | Effective Volume 3m3 Power 30kw | Two-face forming platens, one transferring platen. Mold Platen Size 1800×440mm | Dimension 11100×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
5000pcs/hr | Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen
size: 1500×440mm | Dimension 14800×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
| 6000pcs/hr | Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen
size: 1800×440mm | Dimension 14800×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
Description: The production line capacity isbased on the 30 cell
egg tray. (Mold size: 300×290mm, weight: 70g) For different capacity and other products of the production line,
it can be customized according to clients' requirement. |
The Advantages of Paper Pulp Molding Production Line
1. Waste paper Recycling with low cost
Its raw material are any kind of papers, like wasted newspaper,
carton, printers or leftover bits in paper mill, convenient to collect with low cost.
The cost of pulp molding product is much lower than EPS products.
2. Best environmental protection:
non-environmental pullution during the whole process of production,
utility and waste treatment: no waste water consumption with water
recycling, no waste materials with waste paper recycling, and
non-environmental pullution.
3. Recycling use
low recycling cost and it can be used repeatedly. Biodegradable as
vegetable fiber during one or two month. The finished products can
be stacked, space-saving.
4. Good Market prospect
There is a restriction in developed country such as Europe, America
ans Japan for importing EPS products, and advocate the use of
enviromental packaging materials, encourage for Eco-package
replaced of EPS packages in order to reject white pollution.
5. Good Performance.
Anti-shack, anti-static electricity, better efficiency than EPS, PS
and PVC products.
Application
The machine mainly produce large quantity and easy structure pulp
products such as egg tray, egg carton,fruit tray, fruit tray,
coffee cup tray, medical tray and so on.
Applicable industries: poultry, animal husbandry, agriculture,
carton production industry, printing industry, paper industry, etc.
Range and specification of Paper Pulp Products
Contact Us
Amy
Sale Representative
Overseas Sales Department
Xiangtan ZH Pulp Moulded Co.,Ltd
Tel/Wechat/Whatsapp: +86 15675295837
Address: No#80,Jinque Road, Wujiaxiang Industrial Center Xiangtan
city,
Hunan, China.
website:www.zhmachines.com
FAQ
1.What kind of material we can use as the material?
Any kinds of waste paper or used paper products like old
newspaper,magazines,books, used boxes, abandoned cartons etc, and
easy to collect the raw materials.
2.What kind of Fuel can be used for the whole production line?
Generally the fuel is coal,natural gas,dieseal oil.
3.What kind of products can be made by this machine?
All paper product trays and cartons like paper egg tray,egg
carton,egg box,fruit tray,bottle tray, plate and tableware,
electric product packing, disposable tray, shoes tray etc.
